VuePix Infiled GX2 series is a high-powered multi-purpose LED solution for both indoor and outdoor applications. It has been engineered to offer a lightweight design yet a solid performance in any environment.

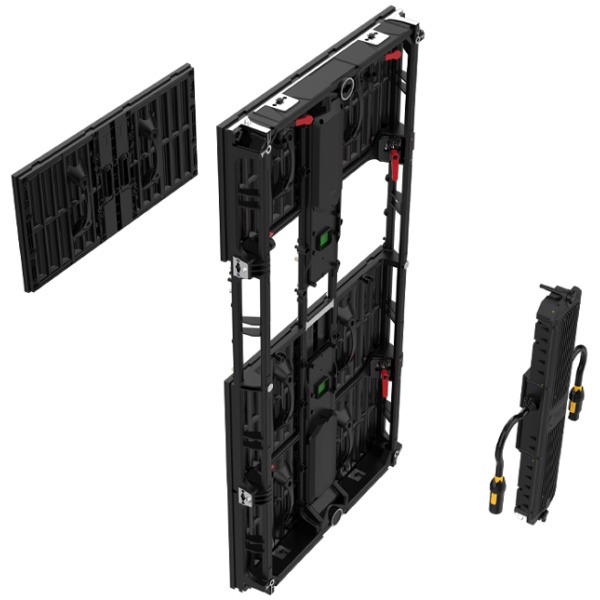

The robust frame is made of die-cast magnesium and aluminum alloy and features enhanced corner protection to prevent the LED diodes from physical damage during transport and handling.
The GX2 series offers flexible mounting & installation possibilities, allowing you to achieve seamless flat, arc, wave & creative configurations.
The outdoor GX2 panels feature advanced waterproof and dustproof protection, making them ideal for any type of outdoor environment.
Series – GX2
Pixel Pitch (mm) – 3.9 mm
Environment – Outdoor
LED Configuration – 3 IN 1 SMD
Max Brightness – 5,000 nits
Refresh Rate – ≤3,840 Hz
Viewing Angle – 160 / 155
Cabinet Weight – 13.5 Kg
Dimensions Width (mm) – 500 mm
Dimensions Height (mm) – 1000 mm
Dimensions Depth (mm) – 75.2 mm
Cabinet Resolution – 128 x 256 Pixels
Max Power Consumption / m2 680 W/m²
Avg Power Consumption / m2 – 226 W/m²
Max Power Consumption / Panel – 340 W/panel
Avg Power Consumption / Panel – 113 W/panel
Operating Power Source – 200-240V AC, 50-60Hz
Operating Temperature -10°C ~ +45°C
Ingress Protection – IP65
*** The hire of this item is restricted and MAY require Power AV to setup, operate and pack down – please contact us to discuss prior to booking online
